Brinno BCC2000 Timelapse Construction Camera
Brinno BCC2000 Timelapse Construction Camera
Bring Long Time Jobsite Monitoring to the Next Level

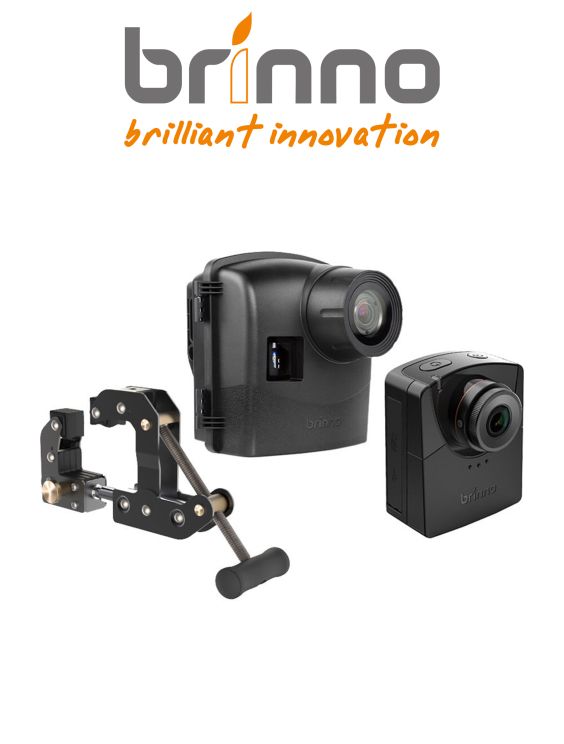

The Construction Trio Bundle Pack (BCC2000) gives all the components you need to shoot truly professional-quality outdoor project video.
The Brinno EMPOWER time lapse camera delivers superior Full HD HDR images; the extended Power Housing further strengthens the long lasting outdoor photographing functionality. The versatile Clamp Mount Kit enables any shooting angle of your choice in open space.
Offering the ultimate blend of flexibility and performance, the Pack makes months or yearlong hassle-free jobsite monitoring a genuine reality.
In the Box

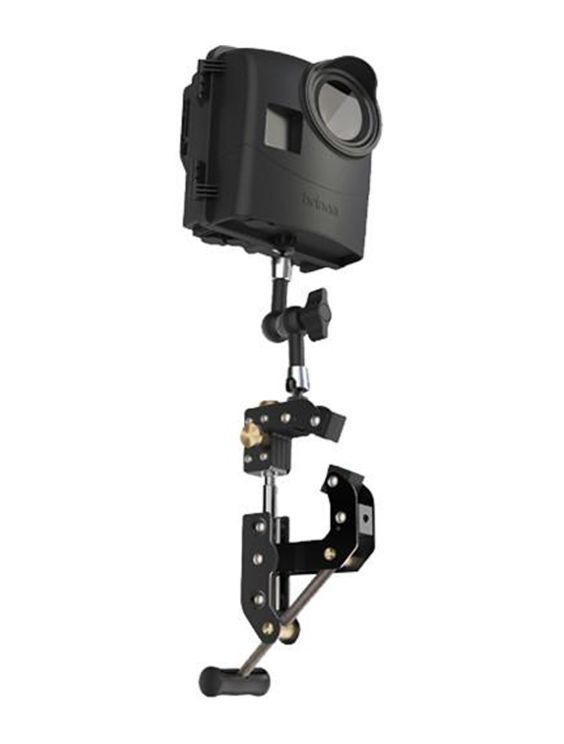

Clamp Mount Kit
| Model NO. | ACC1000 |
|---|---|
| Contents | Camera Clamp; Magic Arm |
| Camera Mount Screw | ¼” |
| Clamping Range | Tube: 0.4- 3.5 in (10 - 90 mm) Flat surface: 0.04- 3.5 in (1 -90 mm) |
| Magic Arm Load Capacity | 6.6 lb (3 KG) |
| Clamp Load Capacity | 110 lb (50 KG) (without extension pole) |
| Size (LxWxH) | Folded: 8.2x 3.7x 1.5 in (209x 94x 39 mm) Extended: 6.9x 7.1x 2.4 in (176x 180x 60 mm) |
| Weight | 26.5 oz (750 g) (included magic arm) |
| Materials | Clamp: Stainless, aluminum Magic Arm: Stainless, metal, aluminum |
Time Lapse Camera
| Model NO. | TLC2000 |
|---|---|
| Resolution | 1080P |
| Aperture | F2.0 |
| Field of View | 118° |
| Capture Mode | Time Lapse, Step Video, Stop Motion, Still Photo |
| LCD Screen | 2" TFT LCD |
| Storage | microSD/ microSDHC/ microSDXC (up to 128 GB, recommend a minimum of Class 10)*1 |
| Power Source | 2 AA Batteries DC IN 5V 1A (USB-C connector) |
| Operating Temperature | 32°F ∼ 113°F(0°C ∼ 45°C) |
| Size (WxHxD) | 2.4x 2.8x 1.7 in (60x 70.6x 42.4 mm) |
| Weight | 3.0 oz(87.5 g) (without battery) |
*Notes:
- Support up to 128GB microSD card. For 64 or 128 GB microSD card, follow instruction on the LCD screen to format the card before using it the first time.

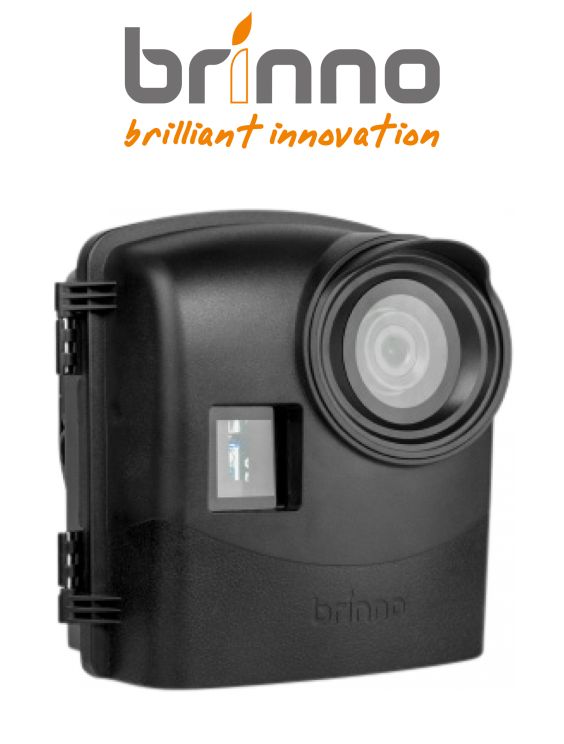

Construction Power Housing
| Model NO. | ATH2000 |
|---|---|
| IP-Rating | IPX5 (weather resistant) |
| Compatible Cameras | TLC200, TLC200Pro, TLC120, TLC130, TLC2000, TLC2020(Use with included battery cover adapter) |
| Battery Slot | Room for up to 16 add'l AA batteries Micro USB connecter (output 5V 2A) |
| Exchangeable Lens Covers | Kit lens cover Extension lens cover (for Brinno BCS lens) |
| Size | 6.6 x 6.1 x 4.5 in (167x156x115.5 mm) |
| Weight | 14 oz (393 g) |
| In the Box | Construction power housing; Camera mounting adapter; Battery slot; Extension lens cover; Desiccant; Screwdriver; USB-C Adapter; Strap*2 |
