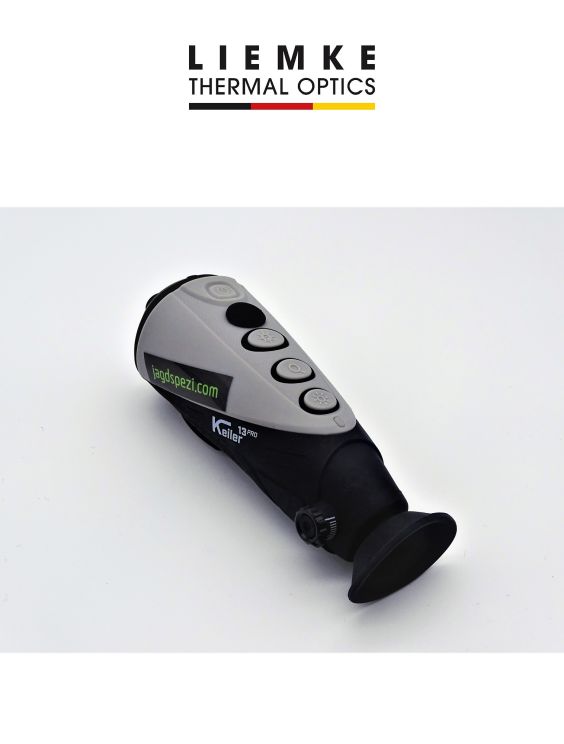

LIEMKE KEILER-13 PRO Ceramic

LIEMKE KEILER-13 PRO Ceramic

The newest generation of this thermal night vision device features a new 240 x 180 ceramic VOx thermal detector with a 17 μm pixel pitch and an even higher temperature sensitivity, when compared to the previous model. This, combined with the 50Hz frame rate, results in a smooth image with an impressive image quality.

The 13mm diameter objective lens provides an excellent field of view of 50m at 100m and a detection range of up to 459m. This provides the KEILER-13 PRO Caremic  hand-held thermal spotter with a very good overview and a detailed image while out hunting.

Four different viewing modes can be activated with this model, which can be optically enlarged by 1.2x or by an additional 2x digital magnification to better identify game.

Video and image files can be transmitted and recorded via cable.

The optimized energy consumption of the KEILER-13 PRO Caremic  thermal night vision scope provides a battery life of up to 12 hours of continuous operation. The KEILER-13 PRO Caremic can also be operated and charged via an external USB power source.

The robust housing ensures a simple and intuitive operation even when wearing gloves.

In accordance with strict regulations, the thermal imaging scope is certified according to IP66 standards to provide optimal protection against dust and water.

Generation Thermal imaging camera
Magnification 1,2
Front lens diameter (mm) 13
Maximum operating distance (m) 459
Sensor resolution (Pixel) 240x180
Image display Different versions
Image cycle rate (Hz) 50
Battery durability (h) 8
Display resolution (Pixel) 720x540
Pixel size 17
Zoom (digital) 2
Apparent field of view (°) 18x13
Field of view at 100 m (m) 31
Length (mm) 160
Width (mm) 60
Height (mm) 60
Weight (g) 330
Series Keiler
